F8
Description

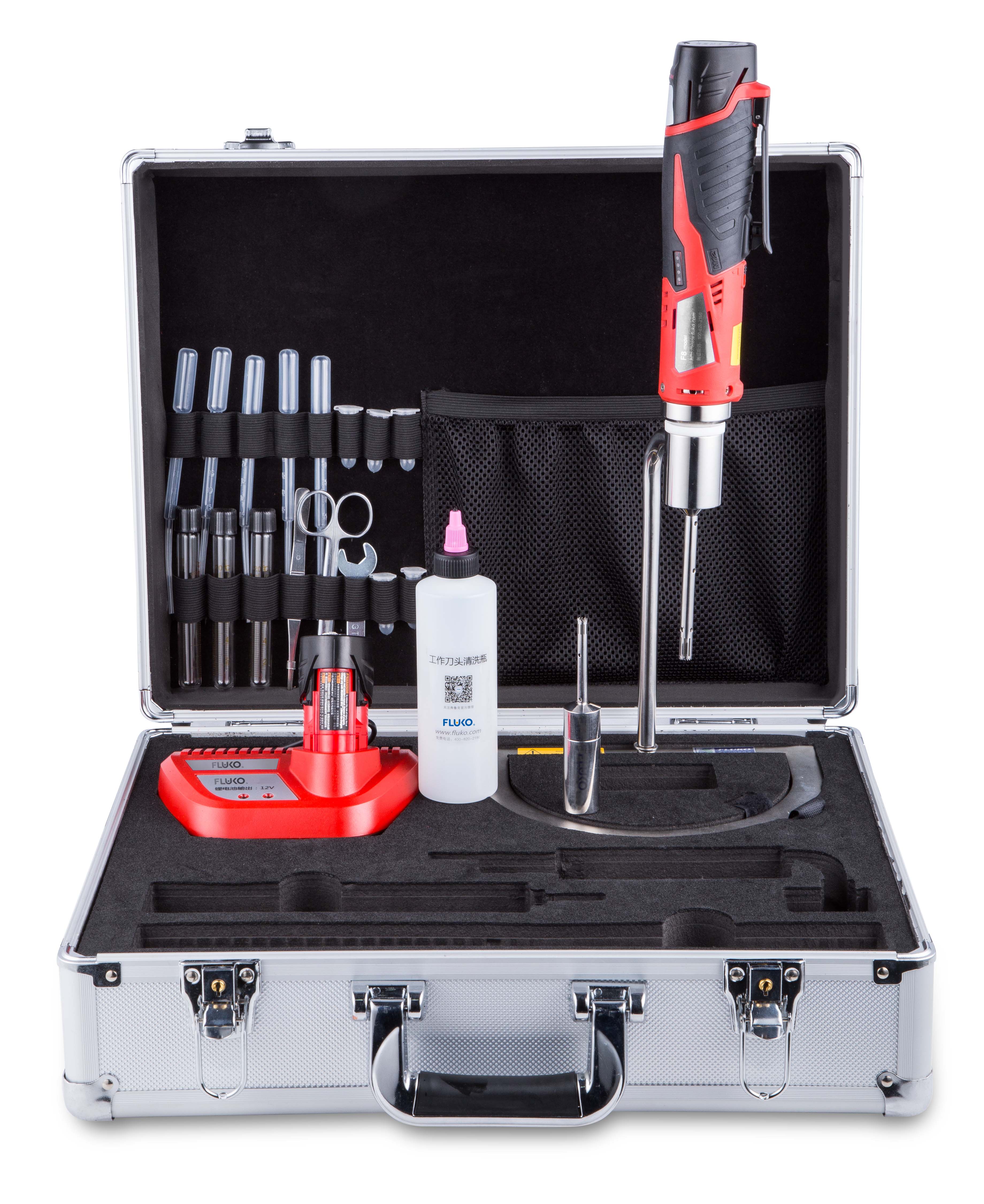

The portable micro homogenizer is equipped with a high-speed homogenization host (powered by lithium batteries), high-precision agitator, medical scissors, tissue tweezers, burettes, centrifuge tubes, sampling bottles, etc., hand operation, light weight and convenient, suitable for outdoor or laboratory mobile operating.
Applicable
Animal and plant tissue fragmentation, homogenate, medical diagnosis, micro dispersion, emulsification and homogenization.
TECHNICAL PARAMETER
| Power supply | 12V DC rechargeable lithium battery |
| Charger input voltage | 220~240V，50~60Hz |
| Charger output voltage | 12V DC，3A |
| Capacity of lithium battery | 2Ah |
| Working capacity(H₂O) | 0.1~60mL |
| Maximum working viscosity | 100cP |
| Single charge time | ~1h |
| Continuous working time | ~1h (H₂O) |
| Rotation speed range | 0~25000rpm |
| Speed control | Stepless |
| Battery indicator | Yes |
| Medium-contact material | SS316L |
| Shaft sleeve material | PTFE |
| Standard agitator | 6GZL-1、8GZL-1 |
| Allow ambient temperature | 5-40℃ |
| Allow humidity | 80% |
| Process type | Micro batch treatment |
| Bracket, charger, spare lithium battery | Standard |
| Outline size of device (including agitator) | 375×65×50 |
| Suitcase size | 475×400×150 |
| Device weight (including agitator) | ~1kg |
| Package weight | ~8.5 kg |
| Package | Aluminum suitcase |
