SMART LAB High Speed Version
SMART LAB High-speed version is a newly launched multi-functional desktop dispersing equipment, providing functional modules such as dispersion, emulsification and grinding, with a maximum tip speed of about 40m/s, which meets the user needs of small flow, high precision and high tip speed. It is suitable for the fine mixing process of a variety of materials, stable performance, flexible use and convenient operation. Minimum processing capacity to mL level, a complete product line, and can achieve from desktop factory to existing process scaling.
Three advantages: Rapid reduction of particle size in oil-water emulsification process; The powder & liquid in small capacity is evenly dispersed; Fine crushing of materials with high tip speed.
Applicable: Nutritional/drug-loaded injections/injection emulsions, peptides/small molecule microspheres, oral/injection-grade suspensions, API crystal fragmentation, dispersing/hydrating processes of excipient thickeners, emulsification of veterinary drugs and adjuvants, etc.
TECHNICAL PARAMETER
| Power | 1.1kW/2P |
| Power supply | 220V 50Hz |
| Flow rate range | 0~100L/h |
| Agitator output rotation speed | 8800~26000rpm |
| Max output tip speed | 40m/s |
| Control system | Standard |
| Speed display | Digital display |
| Speed control | Stepless(frequency control) |
| Speed adjust way | Digital display frequency converter |
| Material of wetted parts | SS316L、FFKM/PTFE |
| Material of non-wetted parts | SS304 |

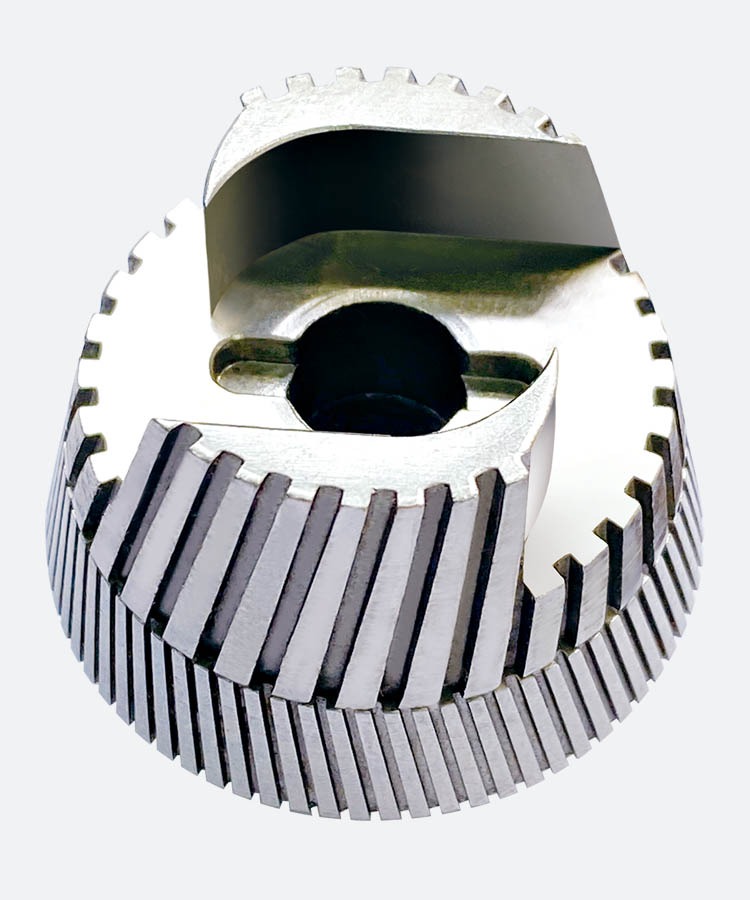

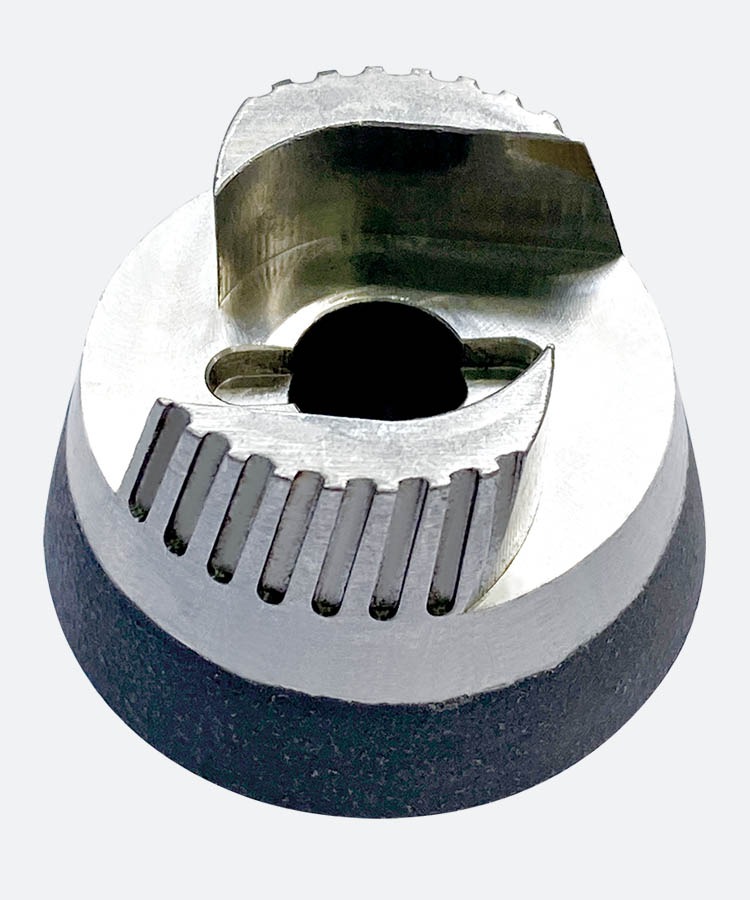

| Agitator type | Precision tooth shape 2G/4M/6F (according to different process can choose stages of rotor & stator or change the rotor & stator form) |
| Working chamber | Stainless steel working chamber with jacket |
| Jacket inlet/outlet connection way | 8mm hose connection plug type |
| Inlet size | 3/4” |
| Outlet size | 1/2” |
| Inlet/outlet pipe connection standard | ASME BPE clamp |
| Seal type | With lip seal structure (no external coolant structure) |
| Bearing box | With jacket bearing box |
| Bearing box jacket inlet/outlet size | 8mm hose connection plug type |
| Base | Adjustable feet |
| Material of base | SS304 |
| Metal material of wetted parts | SS316L、surface electrochemical polishing : ≤0.4um |
| Metal material of non-wetted parts | SS304、surface mechanical polishing: ≤0.8um |
| Material of electric control box | SS304、surface brushed treatment |
| Dimensions | 340×280×360 |
| Weight | ~38kg |
