FM30D
Description

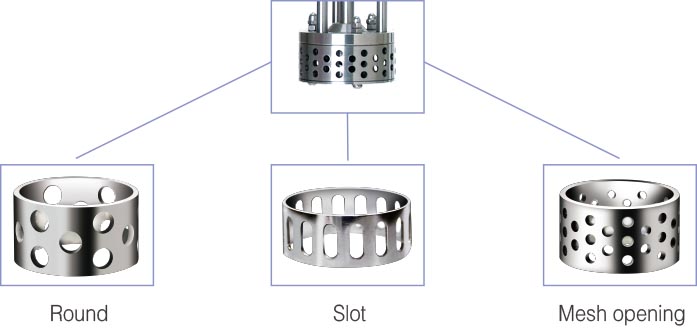

Stepless speed, strong torque output, competent for dispersion, emulsification, homogenization, mixing and other experiments. Various forms of stator, various functions.
Applicable
It is suitable for the dispersion, emulsification, homogenization and mixing of medium-viscosity materials containing solid and liquid.
TECHNICAL PARAMETER
| Motor power | 500W |
| Power supply | 220V，50Hz |
| Working capacity(H₂O) | 200~10000mL |
| Maximum working viscosity | 5000cP |
| Rotation speed range | 2000~14000rpm |
| Speed display | Digital display |
| Speed control | Stepless |
| Standard Stator | Round hole |
| Medium-contact material | SS304 |
| Shaft sleeve material | Copper alloy |
| Permissible temperature range | 5~40℃ |
| Permissible humidity | 80% |
| Process type | Batch processing |
| Work frame, stand base | Standard |
| Overall dimensions | 360×260×760 |
| Weight | ~10kg |
| Package | Carton |
