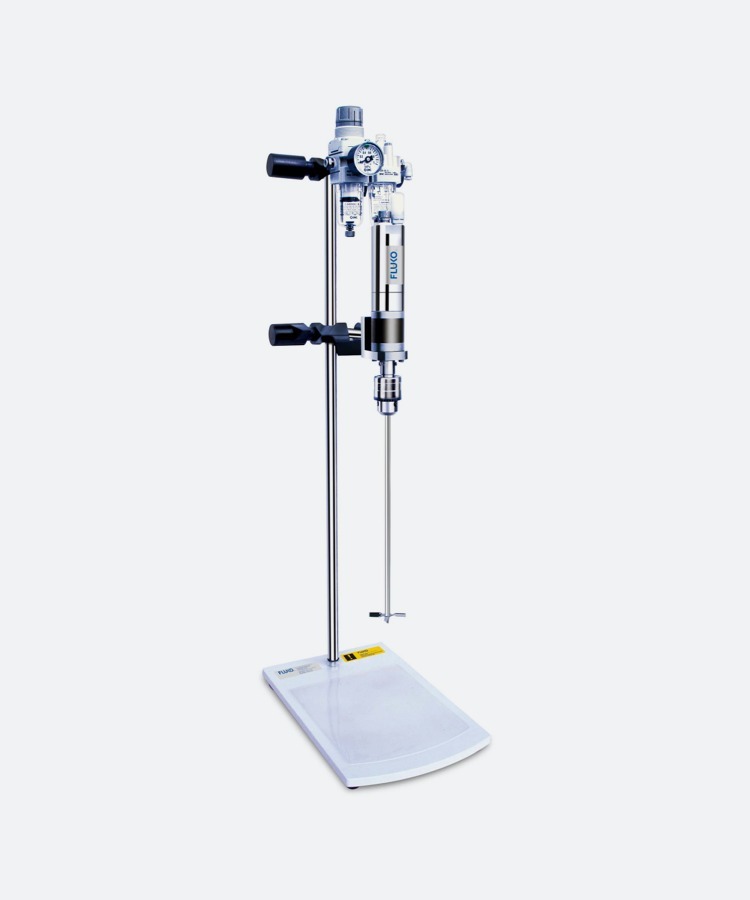

R10
Description
High-quality pneumatic motor, high-precision overload protection, a variety of optional stirring agitators, and with reliable performance.
Applicable
It is suitable for stirring, dispersing and mixing in complex experimental environments such as inflammable, explosive, high temperature and dust.
TECHNICAL PARAMETER
| Motor power | 150W |
| Air consumption | 0.24m³/min |
| Ventilation pressure | 0~6bar |
| Working capacity(H₂O) | 50~30000mL |
| Maximum working viscosity | 5000cP |
| Rotation speed range (load free) | 3000rpm |
| Speed display | No |
| Maximum shaft torque | 80N·cm |
| Medium-contact material | SS316L |
| Overheating protection | No |
| Standard dispersing agitator | Four-blade agitator |
| Permissible temperature range | 5~40℃ |
| Permissible humidity range | 80% |
| Agitator fixation | Drill chuck |
| Clench diameter range | 0.5~10mm |
| Work frame, stand base | Standard |
| Process type | Batch processing |
| Overall dimensions | 215×310×730 |
| Weight | ~7kg |
| Package | Carton |
