EQUIPMENT / Pilot / Inline High Shear SMART LAB High Speed Version

SMART LAB High Speed Version

SMART LAB High-speed version is a newly launched multi-functional desktop dispersing equipment, providing functional modules such as dispersion, emulsification and grinding, with a maximum tip speed of about 40m/s, which meets the user needs of small flow, high precision and high tip speed. It is suitable for the fine mixing process of a variety of materials, stable performance, flexible use and convenient operation. Minimum processing capacity to mL level, a complete product line, and can achieve from desktop factory to existing process scaling.
Three advantages: Rapid reduction of particle size in oil-water emulsification process; The powder & liquid in small capacity is evenly dispersed; Fine crushing of materials with high tip speed.
Applicable: Nutritional/drug-loaded injections/injection emulsions, peptides/small molecule microspheres, oral/injection-grade suspensions, API crystal fragmentation, dispersing/hydrating processes of excipient thickeners, emulsification of veterinary drugs and adjuvants, etc.

TECHNICAL PARAMETER

Power 1.1kW/2P
Power supply 220V 50Hz
Flow rate range 0-100L/h
Agitator output rotation speed 8800-26000rpm
Max output tip speed 40m/s
Control  system Standard
Speed display Digital display
Speed control Stepless(frequency control)
Speed adjust way Digital display frequency converter
Wetted part material  SS316L、surface electrochemical polishing : ≤0.4um
Non-wetted part material SS304

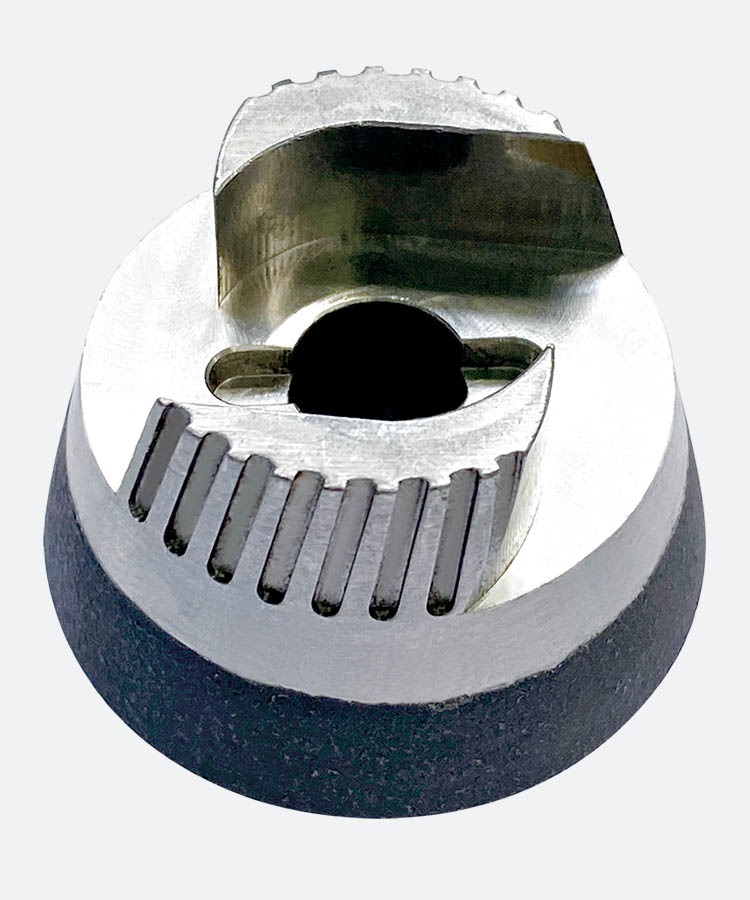

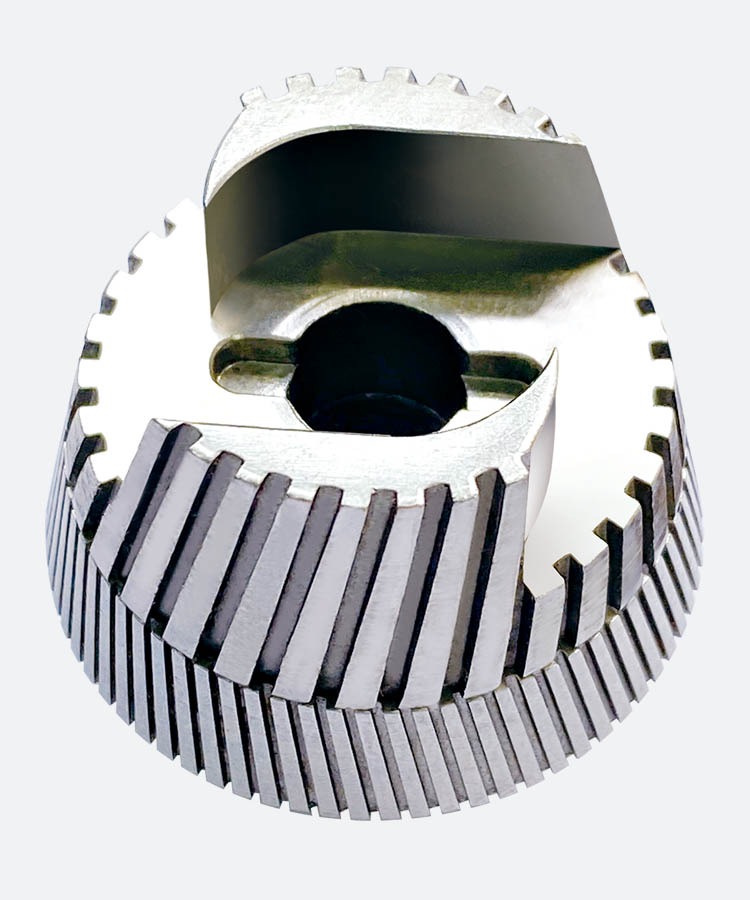

Agitator type Precision tooth shape 2G/4M/6F (according to different process can choose stages of rotor & stator or change the rotor & stator form)
Working chamber Stainless steel working chamber with jacket
Jacket inlet/outlet connection way 8mm hose connection plug type
Inlet size 3/4”
Outlet size 1/2”
Inlet/outlet pipe connection standard ASME BPE clamp
Seal type With lip seal structure (no external coolant structure)
Bearing box With jacket bearing box
Bearing box jacket inlet/outlet size 8mm hose connection plug type
Base Adjustable feet
Material of base SS304
Non-wetted part material  SS304、surface mechanical polishing: ≤0.8um
Material of electric control box SS304、surface brushed treatment
Dimensions 340mm*280mm*360mm
Weight  ~38kg
