FA60 pro
Description

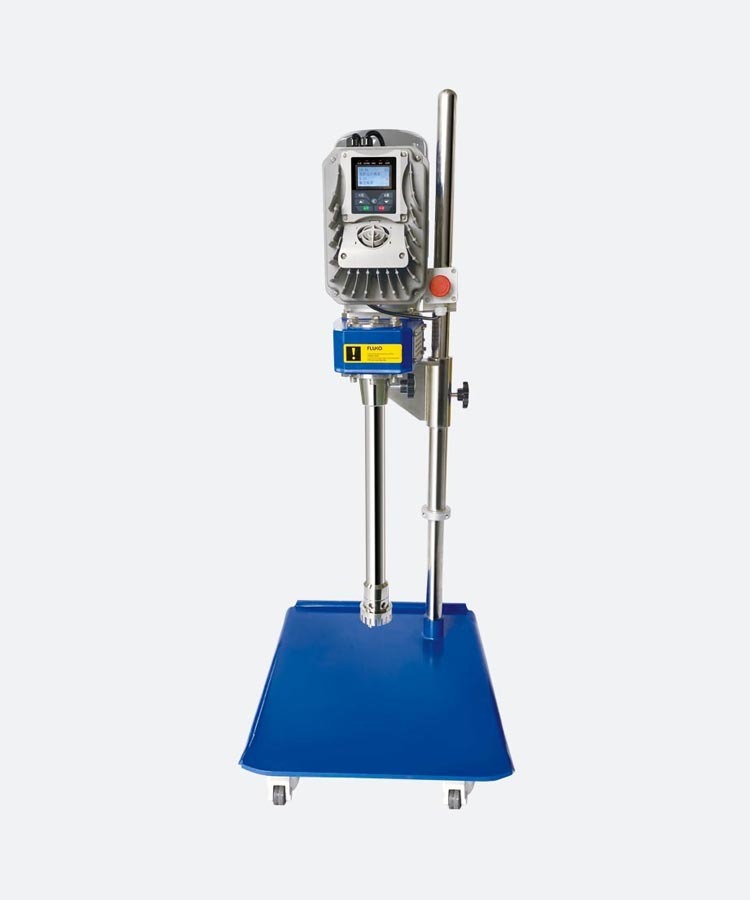

High-speed pilot-scale disperser, with maximum capacity of 50L and maximum speed of 9500rpm, is suitable for pilot-scale and small-scale production workshops. The wide speed range (1000-9500rpm) ensures that users can operate at high linear speeds even with small diameter rotors. Stator/rotor and temperature and corrosion resistance parts, adapt to different conditions of application, effectively ensure the compatibility of various industries and the repeatability of operation.
Features
Tip speed

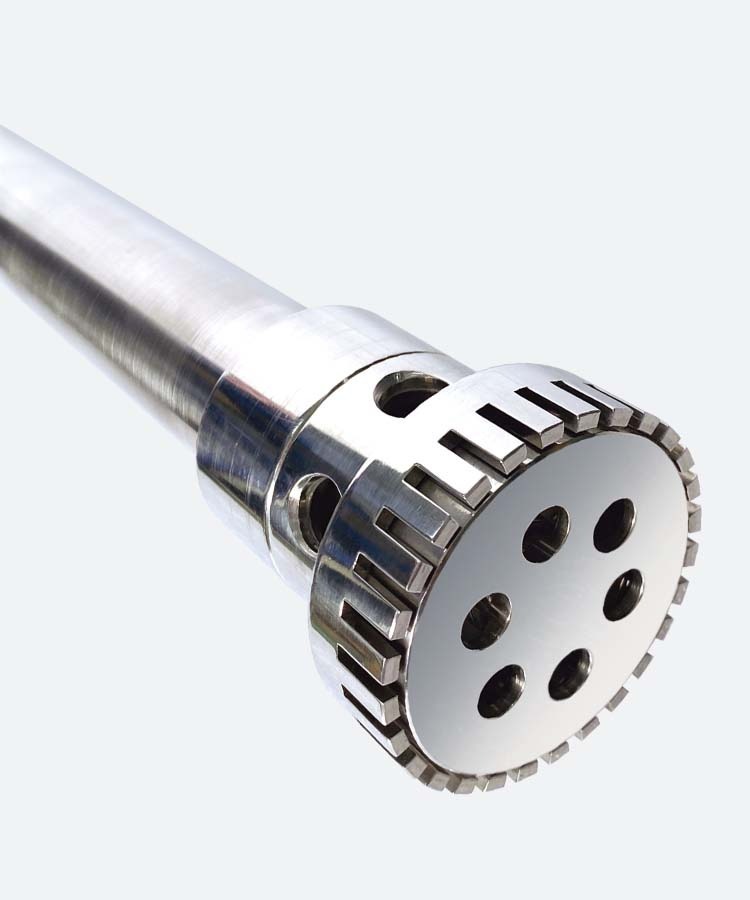

Multiple optional agitators
Both experimental and production
Fine dispersion emulsification
Digital speed display
Error code display
Quick overload protection
TECHNICAL PARAMETER
| Power supply | 220V 1ph |
| Frequency | 50 Hz |
| Input power | 3000 W |
| Output power | 2500 W |
| Capacity(H₂O) | 2~50 L |
| Max viscosity | 5000 cP |
| Rotation speed | 1000~9500 rpm |
| Speed control | stepless |
| Speed deviation | 3‰ |
| Rotation speed display | LED |

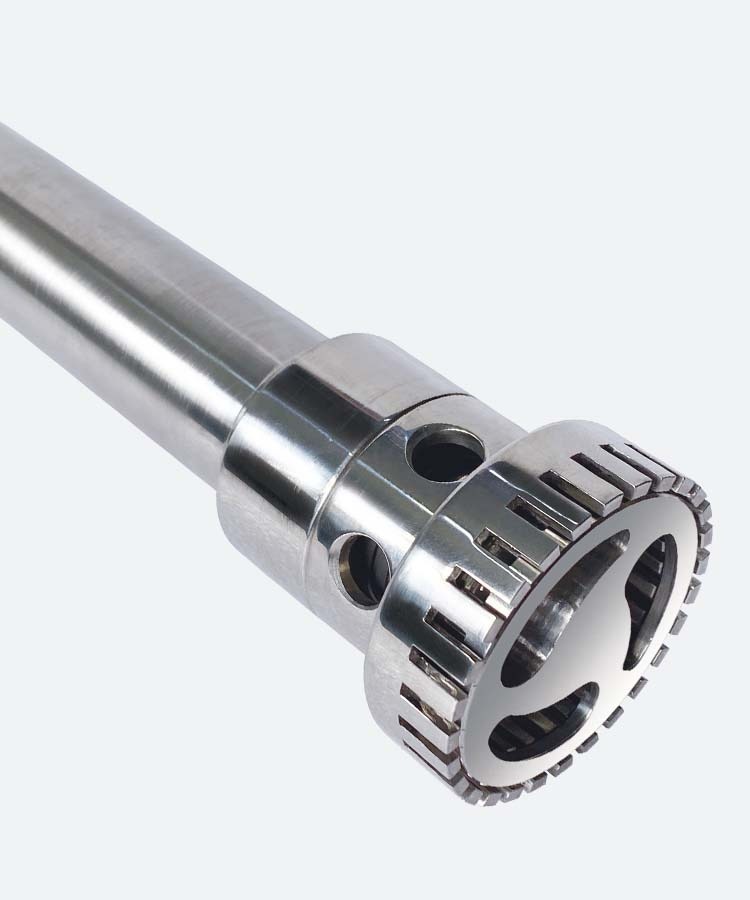

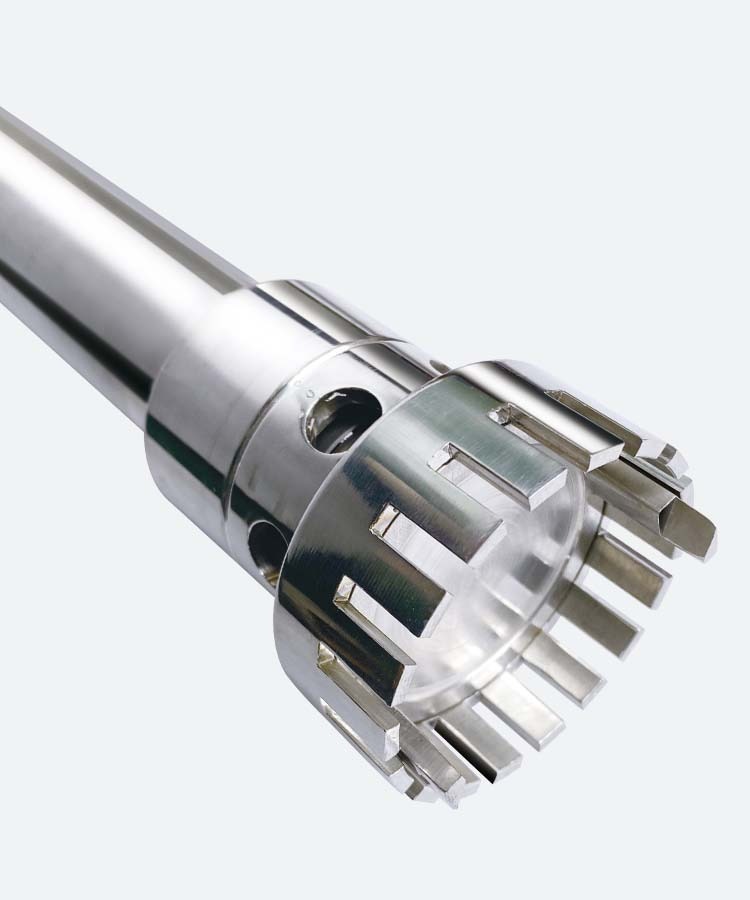

| Standard agitator | 60PDG |
| Noise(no agitator) | 75 dB(A) |
| Dimensions | 440×260×492 mm |
| Weight | 35 kg |
| Package | Wooden box |
