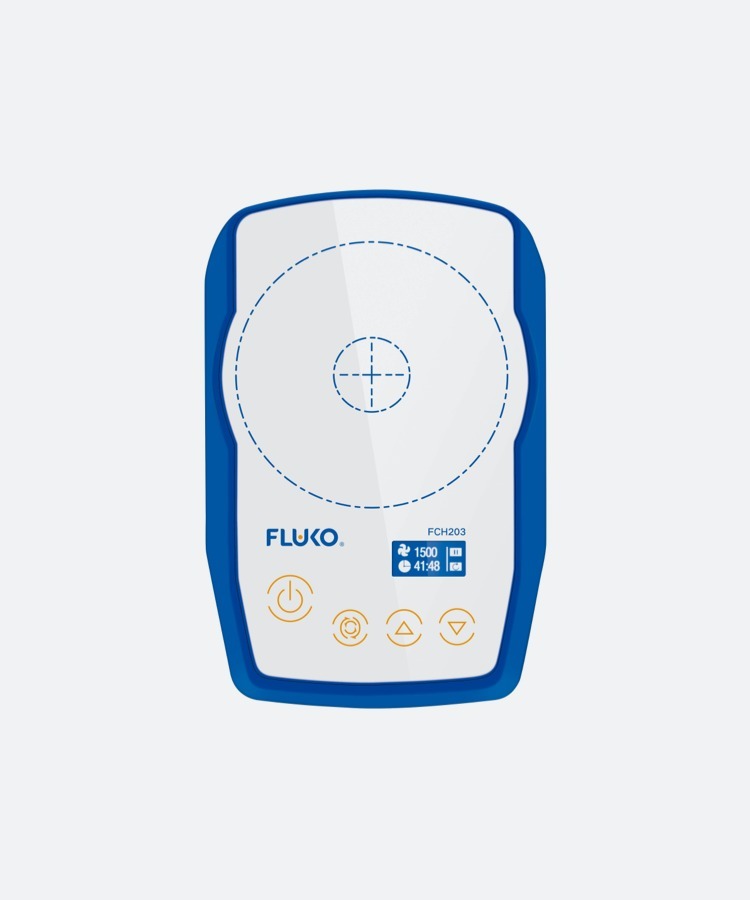

FCH203
Suitable for mixing and stirring small volume and low viscosity fluid materials.
TECHNICAL PARAMETER
| Order # | 6914000 |
| Panel/heating pad size | Φ100 mm |
| Capacity of stirring (H₂O) | Max.1000 mL |
| Input/output power | 6/3W |
| Speed range | 15~1500rpm |
| Minimum speed adjustment | 10rpm |
| Working environment temperature range | 5~40℃ |
| Working environment humidity range | 80% |
| Magnet specification | Φ8×25 mm |
| Controller | Touch switch |
| Display | OLED |
| Positive reversal | Yes |
| Material of panel | Tempered glass |
| Material of equipment | Plastic |
| Dimensions (w × d × h mm) | 117×180×12 |
| Weight | 0.3kg |
| Protection grade | IP65 |
| Power supply | 1phase AC 100-240V, 50/60Hz |
