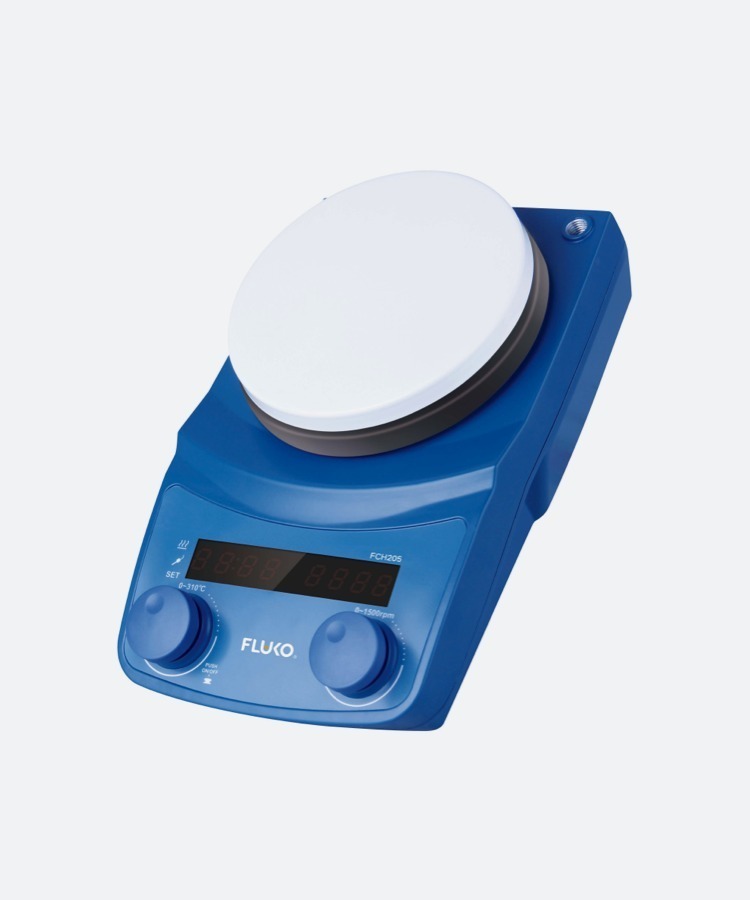

FCH205
Best-selling magnetic stirrer, one-button shuttle control, ceramic panel, precise heating, cleaning digital display, accuracy of temperature measurement..
Suitable for mixing and stirring various low-viscosity fluid materials.
TECHNICAL PARAMETER
| Power supply | 1phase AC 200 - 240V, 50/60Hz |
| Panel/heating pad size | Φ135 mm |
| Capacity of stirring (H₂O) | Max. 5000mL |
| Input/output power | 30W / 20W |
| Speed range | 50～1,500rpm |
| Minimum speed adjustment | 10rpm |
| Heating temperature range | RT-310℃ |
| Heating temperature accuracy | ±1℃ |
| Temperature display accuracy | ± 0.1℃ |
| Minimum temperature adjustment | ±1℃ |
| Heating output power | 600W |
| Temperature checking | PT1000 |
| Working environment temperature range | +5～40℃ |
| Working environment humidity range | ≤80 % |
| Magnet specification | Φ8 × 40 mm |
| Controller | Digital feedback controller, Jog-Shuttle switch (rotate + press) |
| Display | LED |
| Material of panel | Aluminum alloy ceramic coating |
| Material of equipment | Aluminum alloy |
| Dimensions (w × d × h mm) | 250 × 158 × 92 |
| Weight | 1.9kg |
| Protection grade | IP42 |
| Temperature sensor | Yes |
| Stand for temperature sensor | Yes |
