FA25
Description

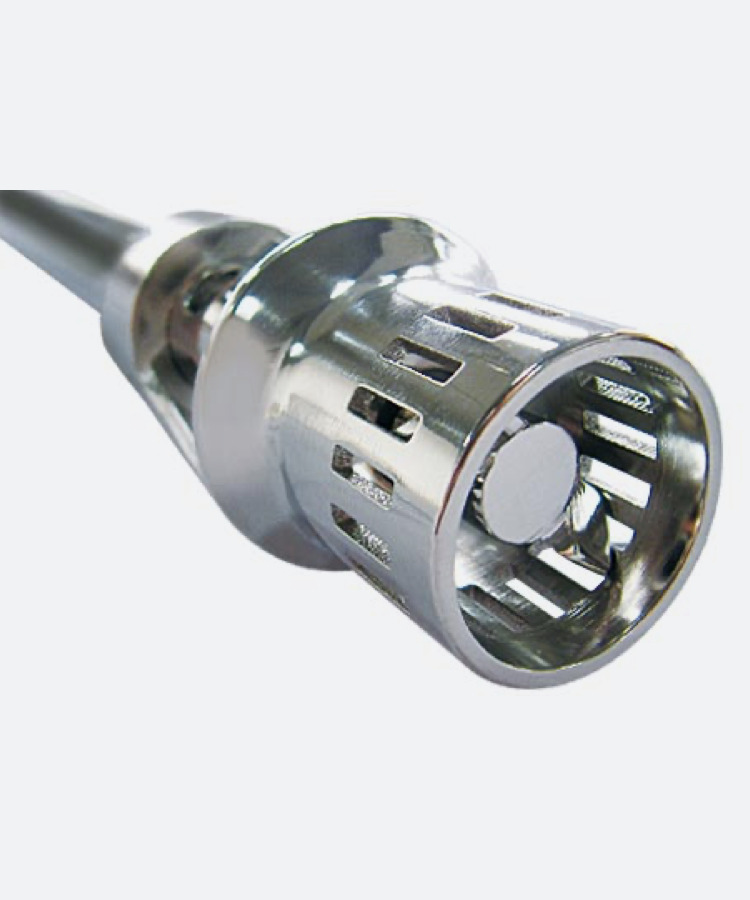

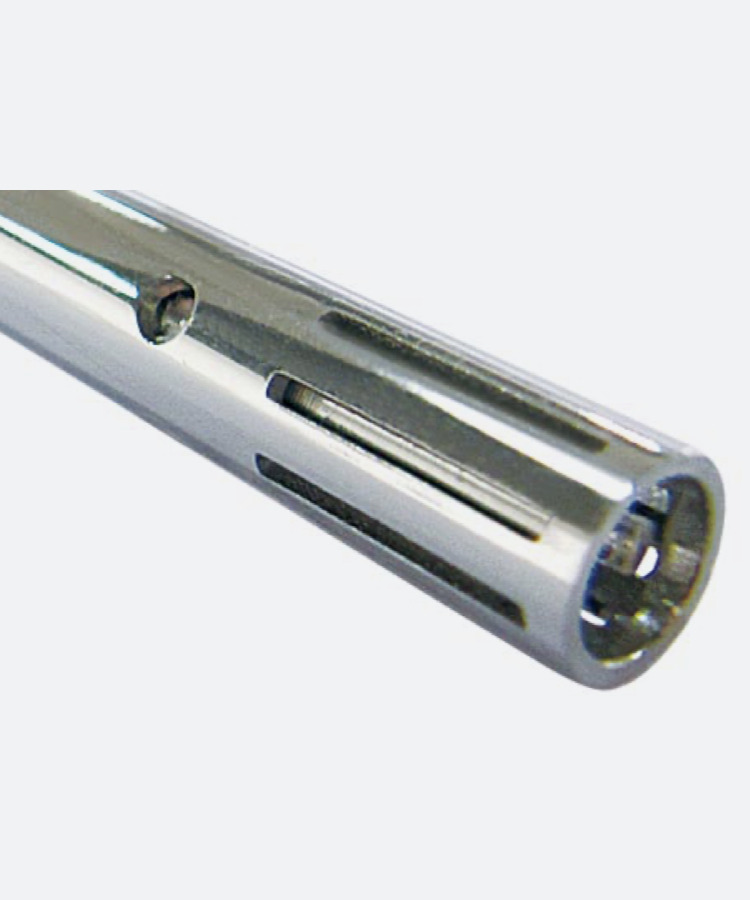

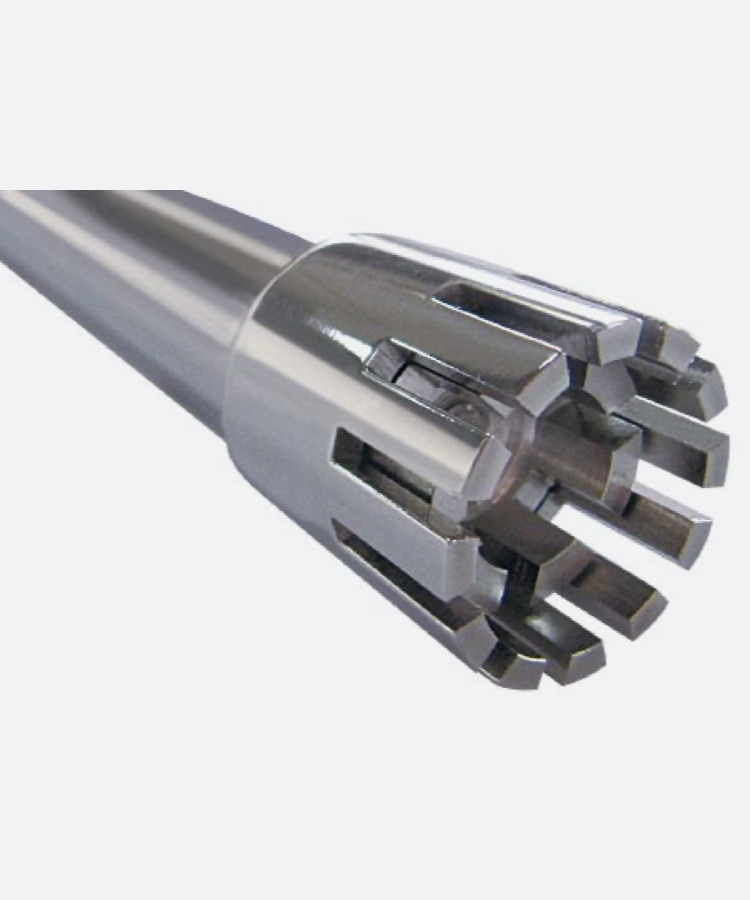

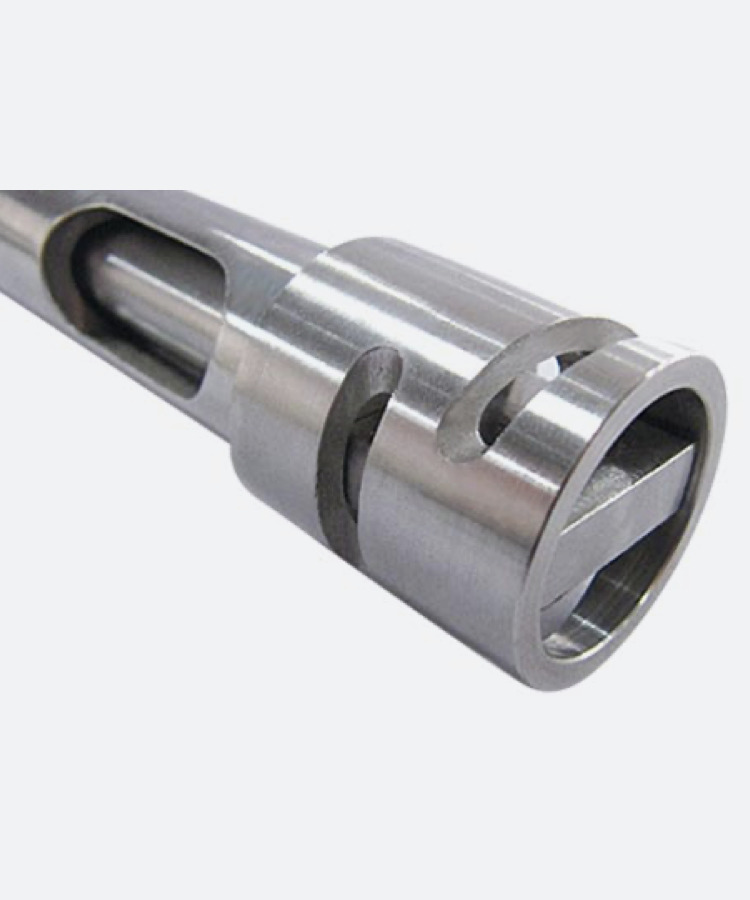

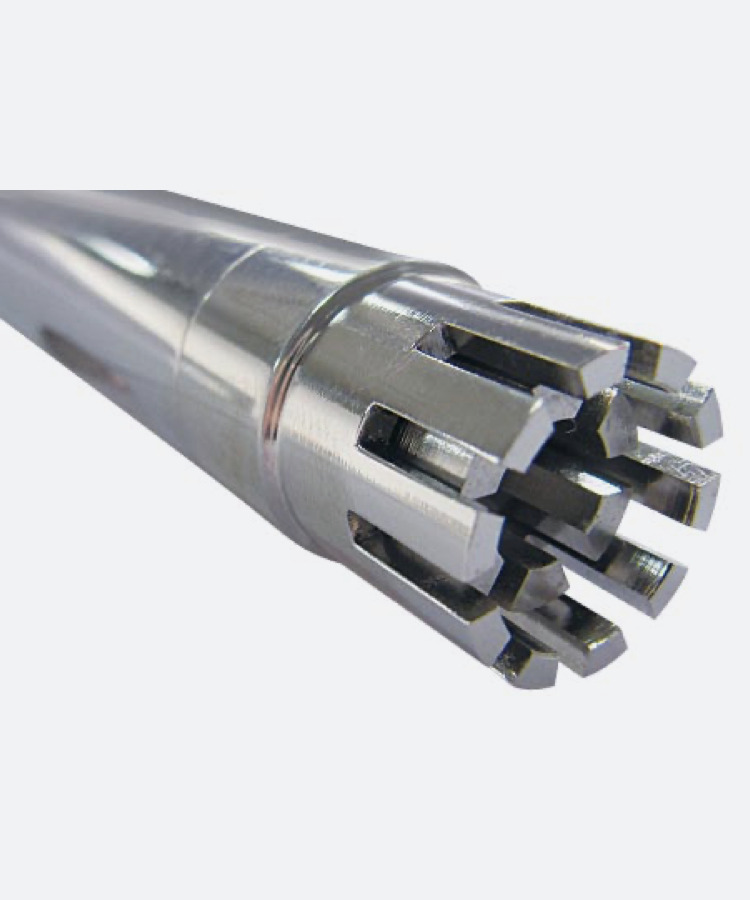

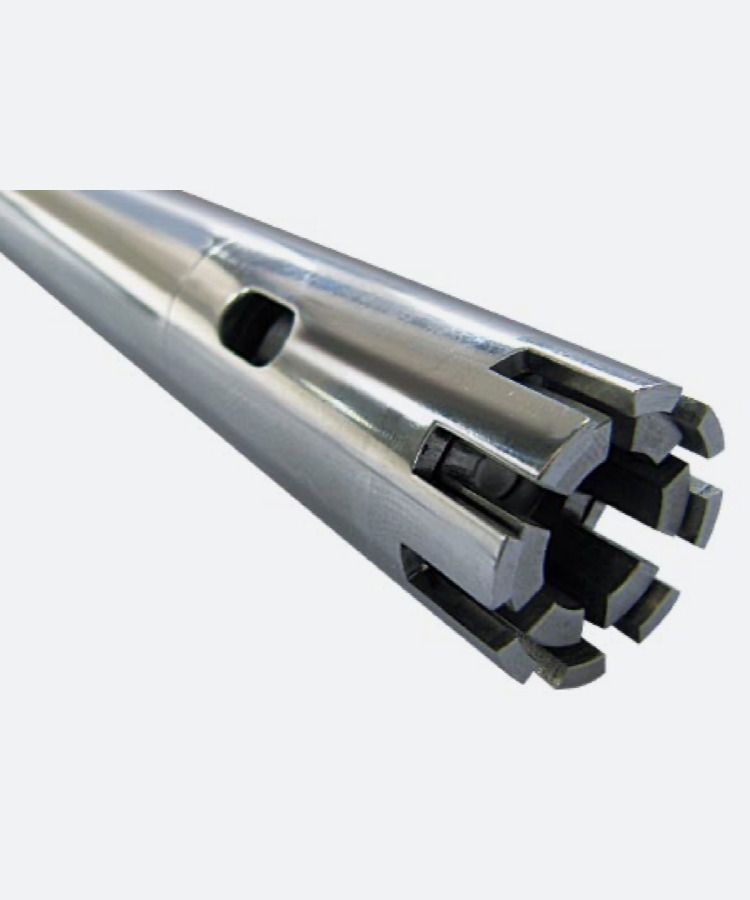

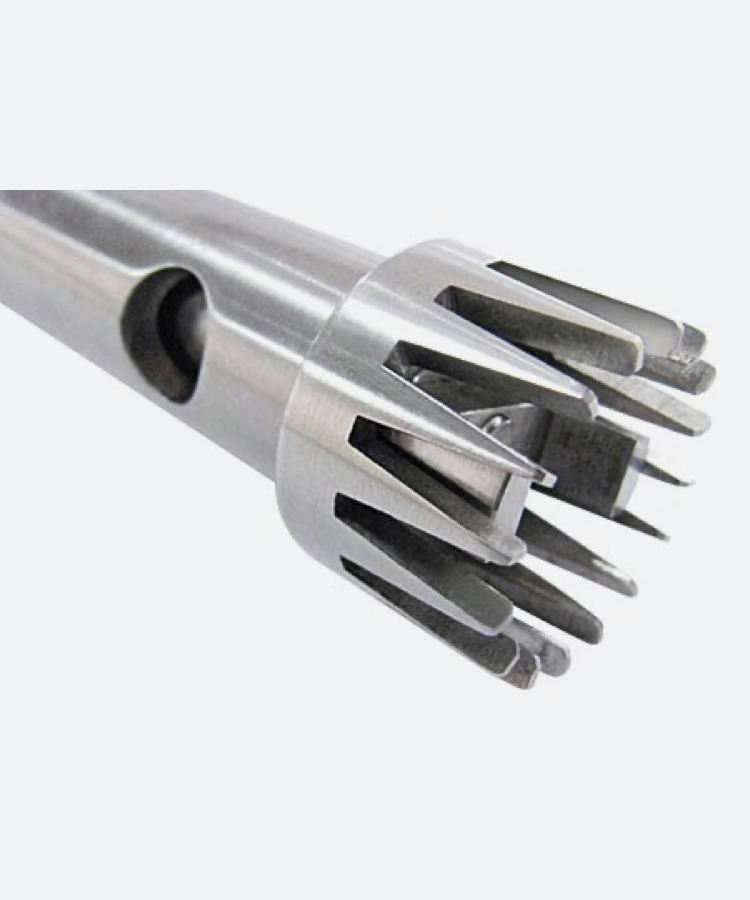

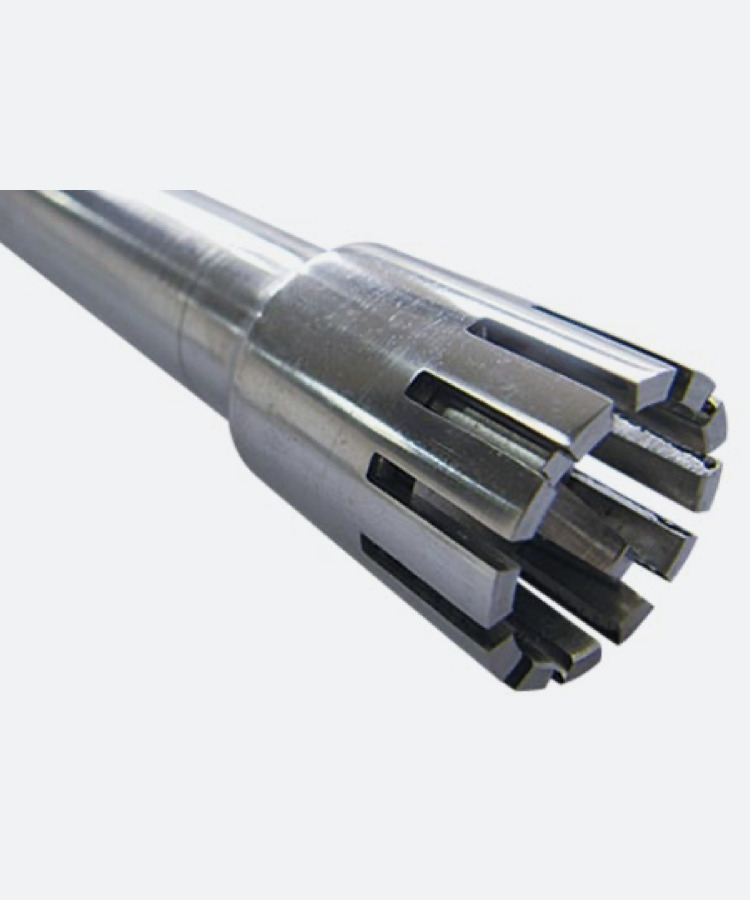

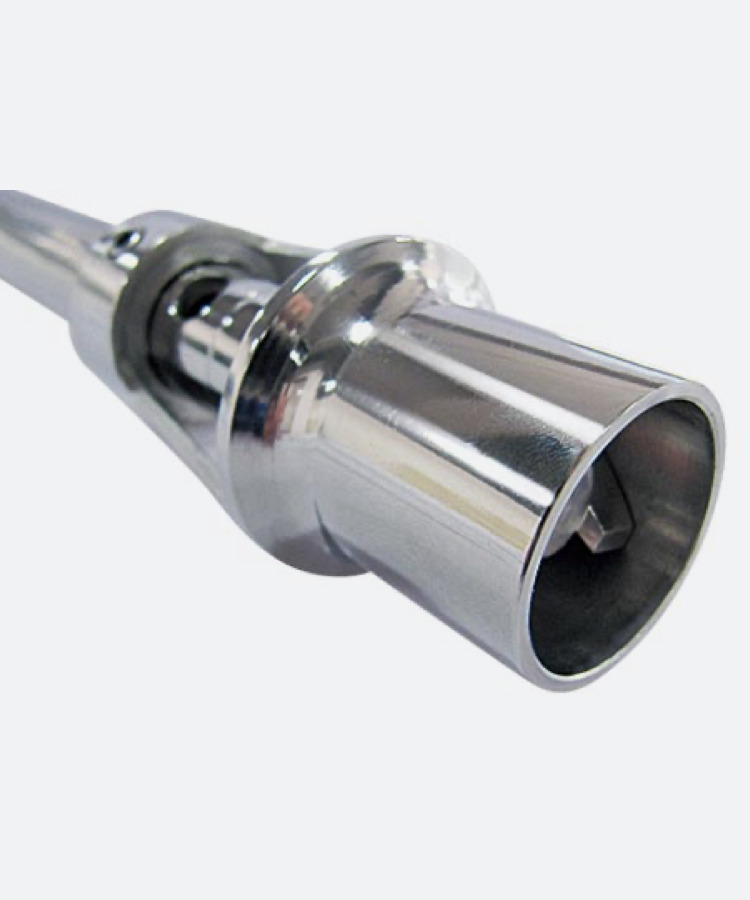

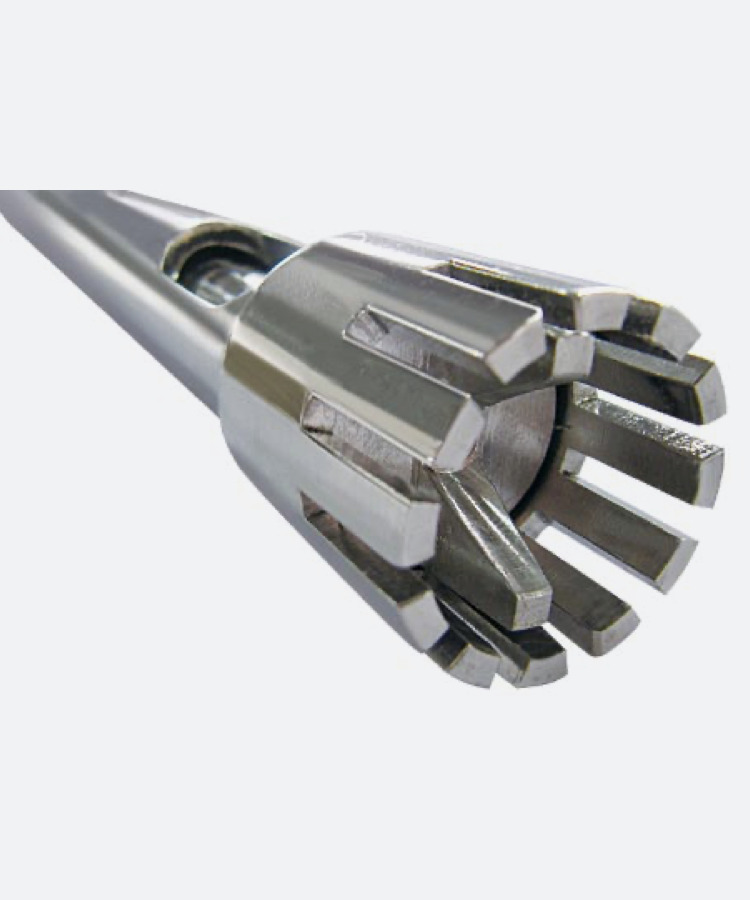

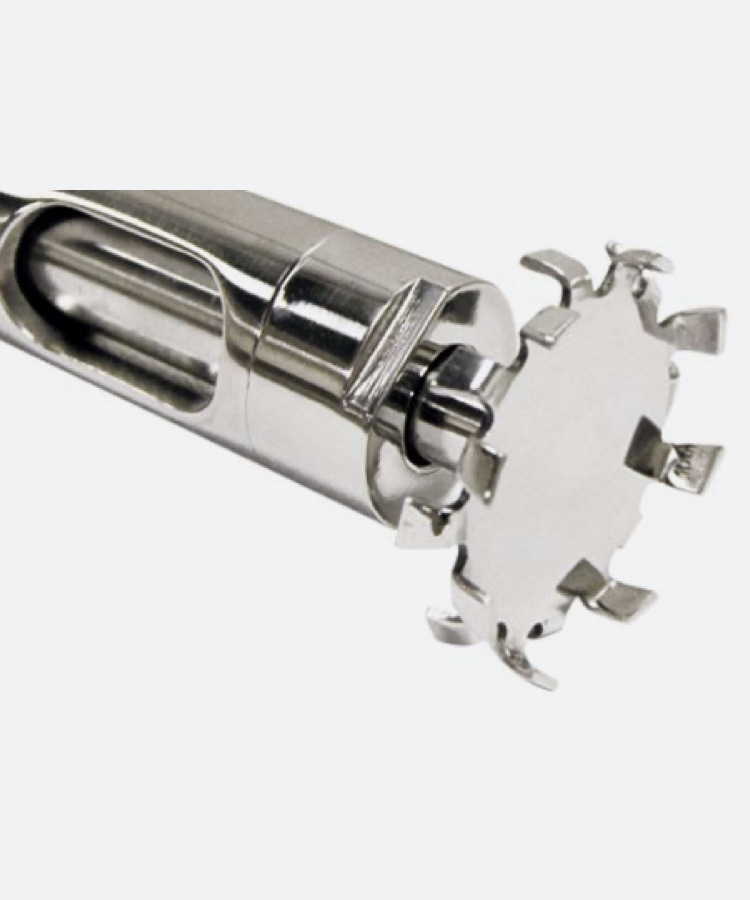

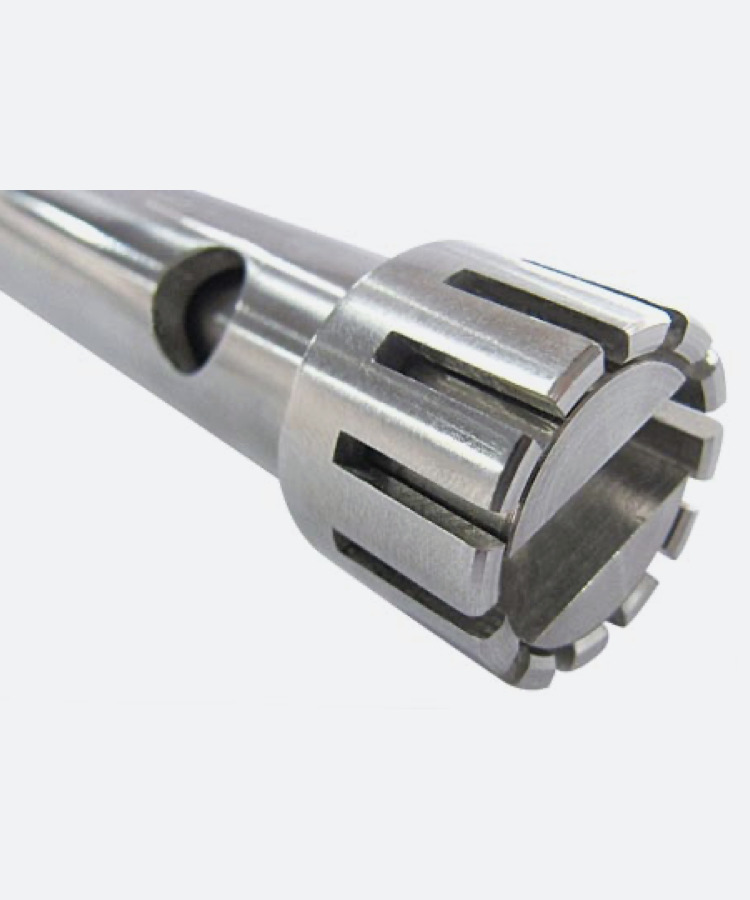

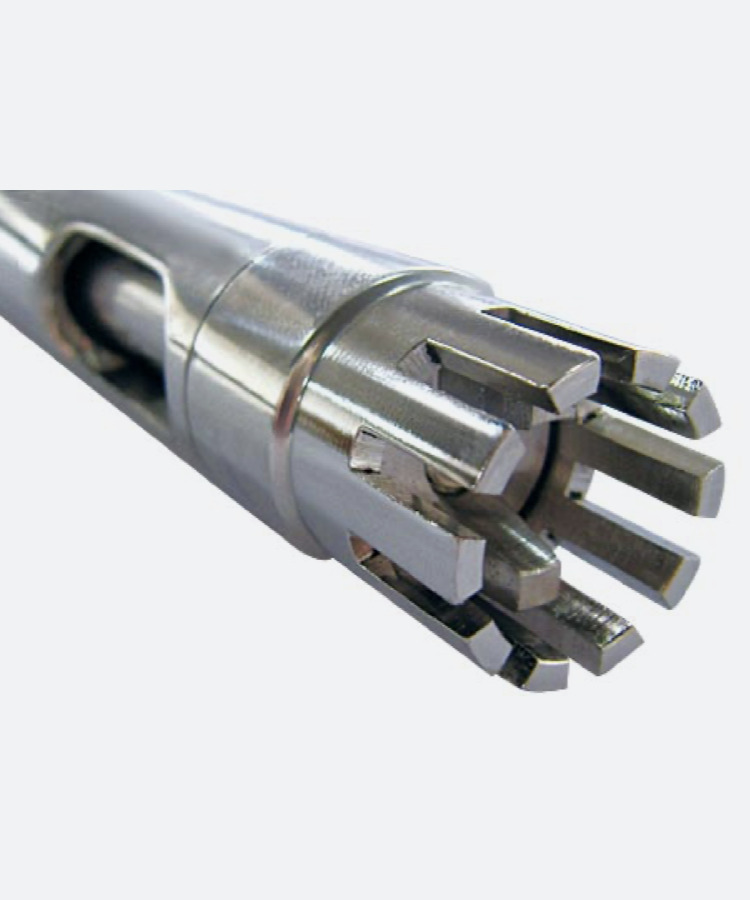

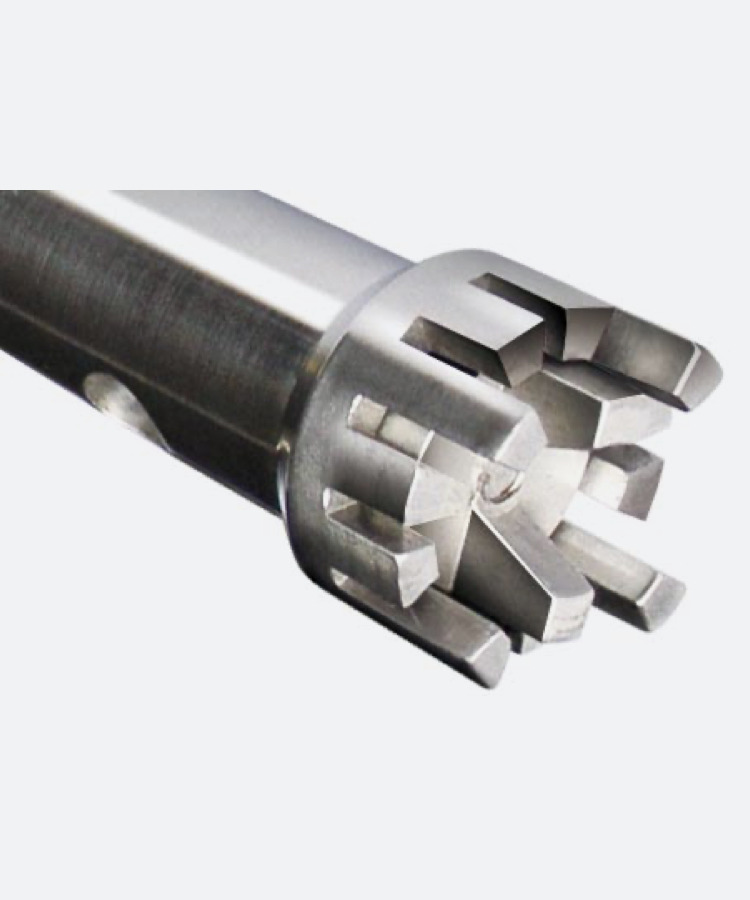

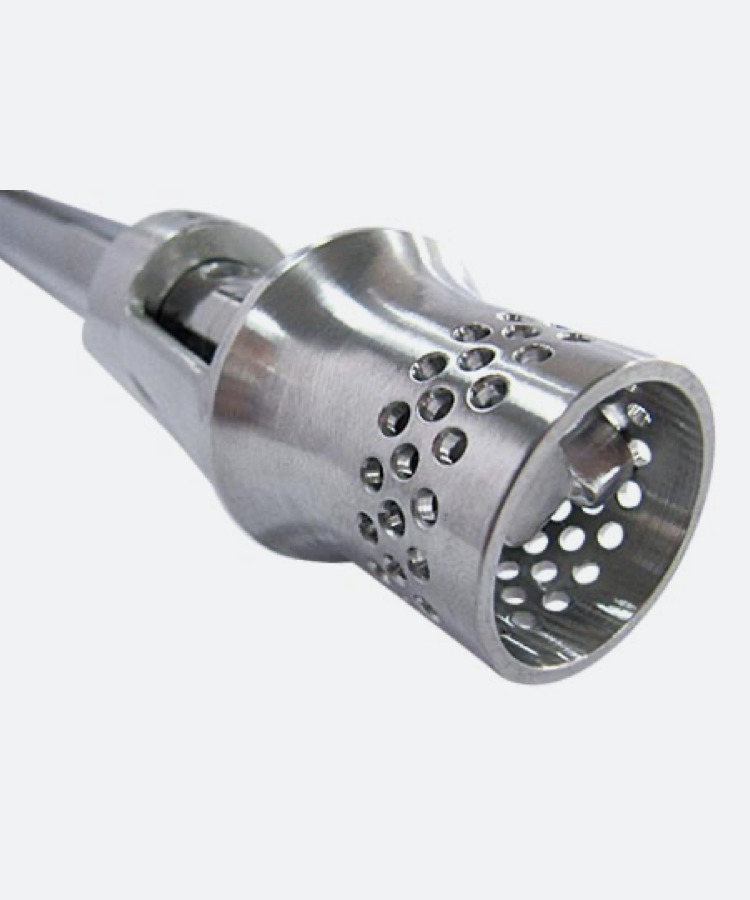

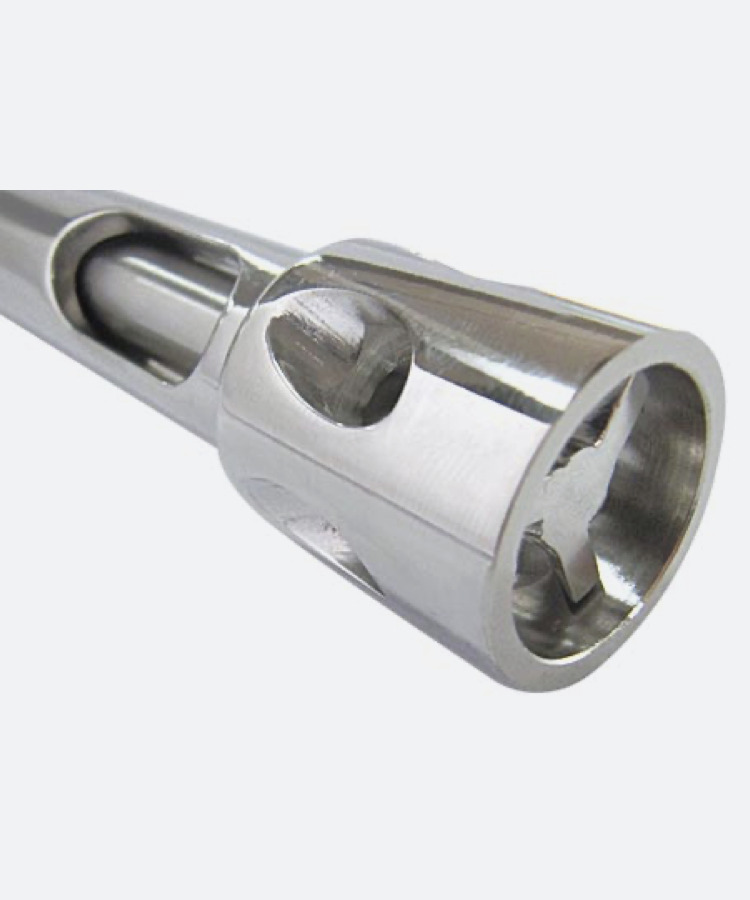

High-speed motor (digital display is optional), can be equipped with a variety of agitator, the maximum speed up to 28000rpm, and the tip speed up to 27m/s.
Integrating dexterity, convenience, and high scalability, the whole machine has a modular structure and is easy to operate. It can run for a long time and can easily meet a variety of high-demand dispersion and emulsification experiments.
Applicable
Suitable for a variety of different processes, including dispersing, emulsifying, homogenizing, grinding, mixing, dispersing of high viscosity materials, breaking of animal and plant tissues, homogenizing, etc.
High-speed motor (digital display is optional), can be equipped with a variety of agitator, the maximum speed up to 28000rpm, and the tip speed up to 27m/s.
Integrating dexterity, convenience, and high scalability, the whole machine has a modular structure and is easy to operate. It can run for a long time and can easily meet a variety of high-demand dispersion and emulsification experiments.
Applicable
Suitable for a variety of different processes, including dispersing, emulsifying, homogenizing, grinding, mixing, dispersing of high viscosity materials, breaking of animal and plant tissues, homogenizing, etc.
TECHNICAL PARAMETER
| Motor power | 500W |
| Motor supply | 220V，50/60Hz |
| Working capacity(H₂O) | 0.2~7000mL |
| Maximum working viscosity | 8000cP |
| Speed range (no-load) | 10000~28000rpm |
| Maximum tip speed | 27m/s |
| Speed display | Scale |
| Speed control | Stepless |
| Medium-contact material | SS316L |
| Shaft sleeve material | PTFE |

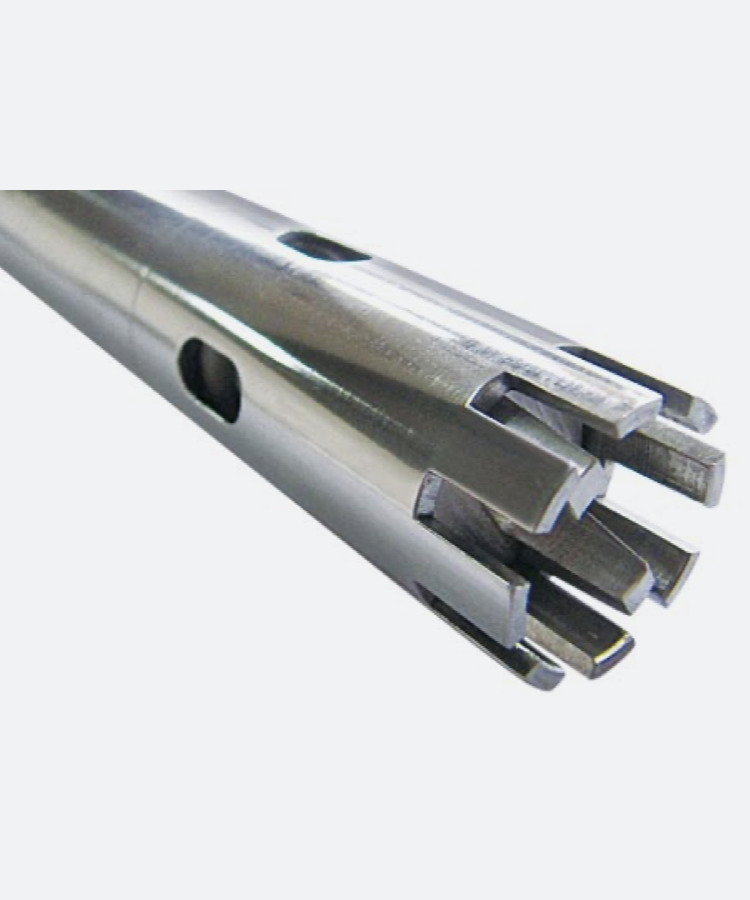

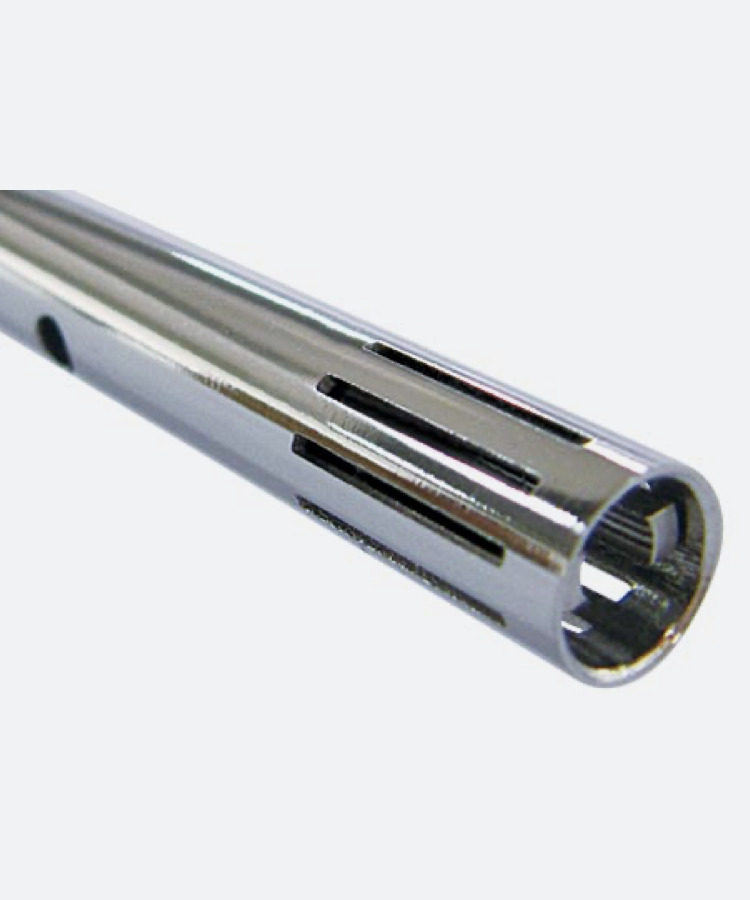

| Standard agitator | 25F |
| Permissible temperature range | 5~40℃ |
| Permissible humidity | 80% |
| Process type | Batch processing |
| Work frame, stand base | Standard |
| Overall dimensions | 215×310×730 |
| Weight | ~10kg |
| Package | Carton |
