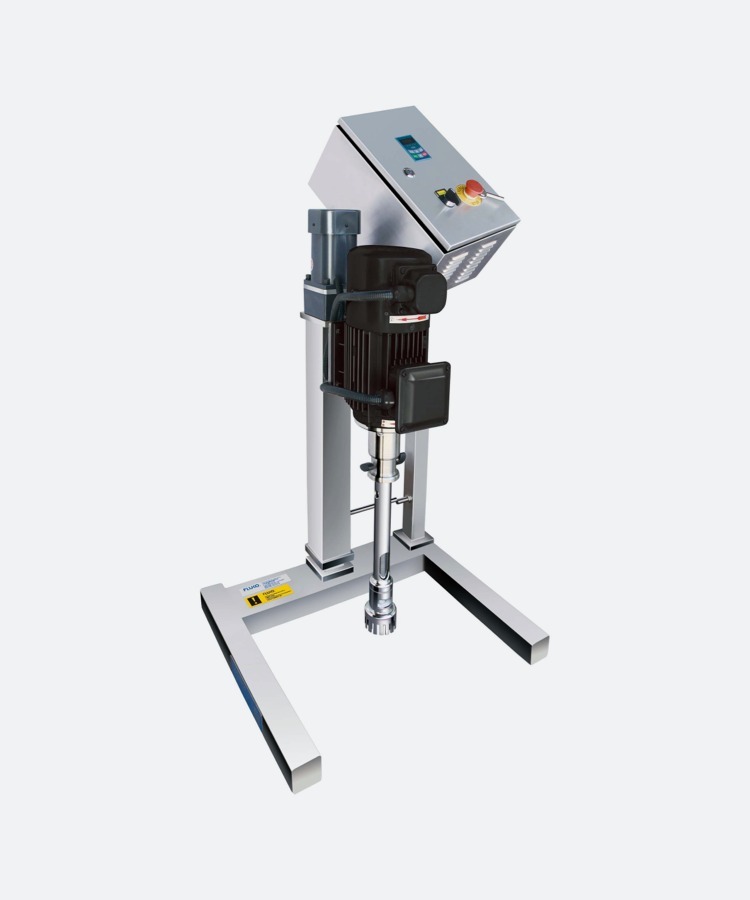

FA60
The laboratory test type equipment for accurate production simulation from small tests to industrial-ization, providing a basis for inspection of the production process and selection of large production equipment. Interchangeable work heads allow for operation in multiple environments. Integrated control, variable frequency speed regulation, speed display, electric lift and other functions.
Pilot for mixing, dispersing, homogenizing, emulsifying, solid-liquid mixing and other processes.
TECHNICAL PARAMETER
| Motor power | 750W |
| Power supply | 220V，50Hz |
| Working capacity (H₂O) | 5-30L |
| Maximum working viscosity | 5000cP |
| Speed range | 300-6000rpm |
| Speed display | Digital display |
| Speed control | Frequency control |
| Medium-contact material | SS316L |
| Shaft sleeve material | PTFE |
| Standard dispersing agitator | 60F |
| Permissible temperature range | 5-40℃ |
| Permissible humidity range | ≤80% |
| Protection grade for motor hood | IP54 |
| Inverter | Standard |
| Overload protection | Yes |
| Process type | Batch processing |
| Work frame, stand base | Electric lifting |
| Work frame, stand base material | SS304 |
| lifting range | 360 |
| Overall dimensions | 500×400×915 |
| Weight | ~35kg |
| Package | Wooden case |
