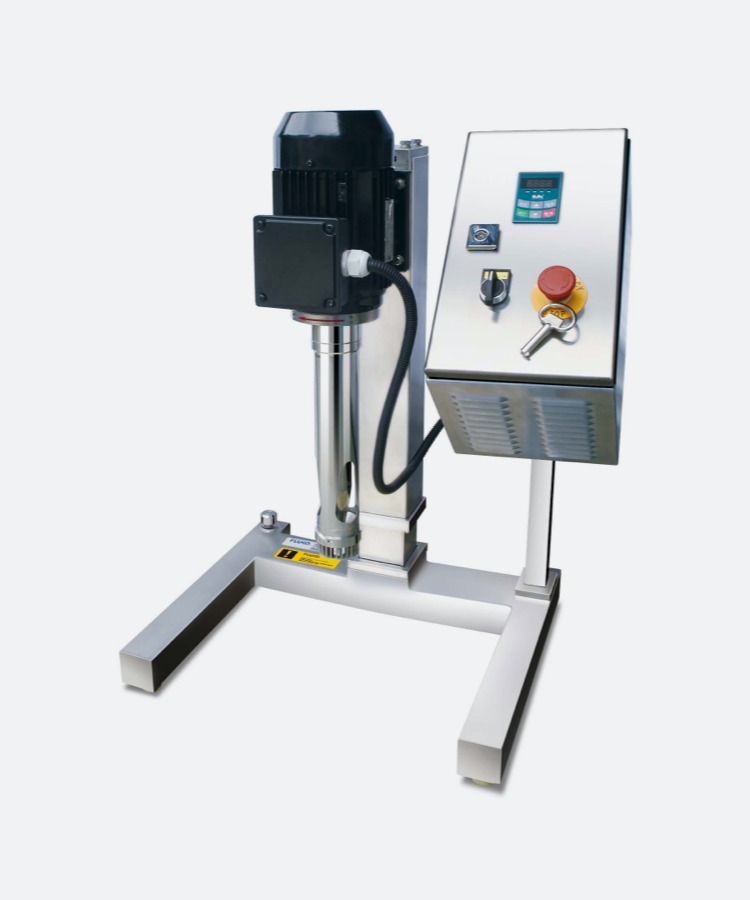

MS10
Single point torque transmission no-bear agitator with high-speed motor, frequency conversion and speed display, mute function and electric lift. No pollution or temperature rise. Conforms to the GMP specification.
Suitable for dispersing, emulsifying, homogenizing and mixing of corrosive or temperature sensitive materials, or materials with sanitary requirements.
TECHNICAL PARAMETER
| Motor power | 550W |
| Power supply | 220V，50Hz |
| Protection grade for motor hood | IP54 |
| Speed range | 600-6000rpm |
| Speed display | Digital display |
| Speed control | Frequency control |
| Working capacity (H₂O) | 1-10L |

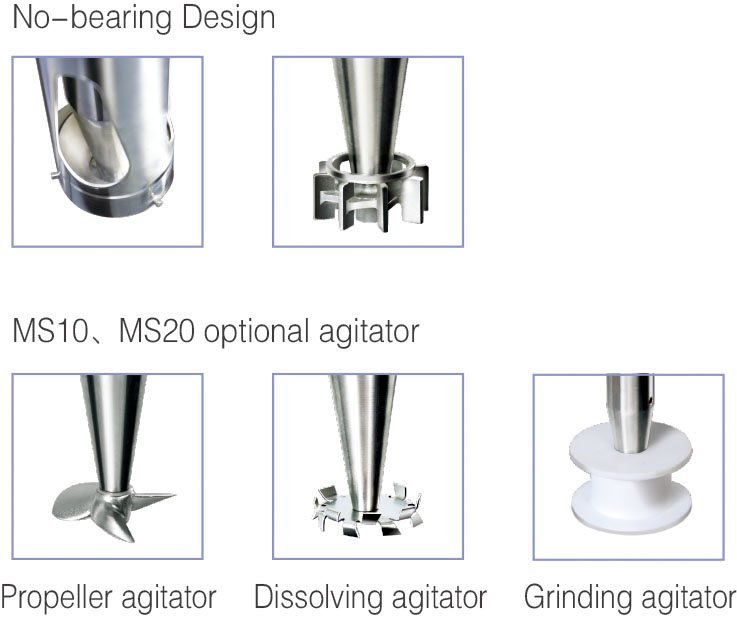

| Standard dispersing agitator | High shear agitator |
| Maximum line speed | 12m/s |
| Medium-contact material | SS316L |
| Inverter | Standard |
| Electric control box | Standard |
| Electric control box material | SS304 |
| Work frame | Electric lifting stand |
| Work frame material | SS304 |
| Sound | 85dB（A） |
| Weight | 65kg |
| Overall dimensions | 463×575×780 |
| Package | Wooden case |
