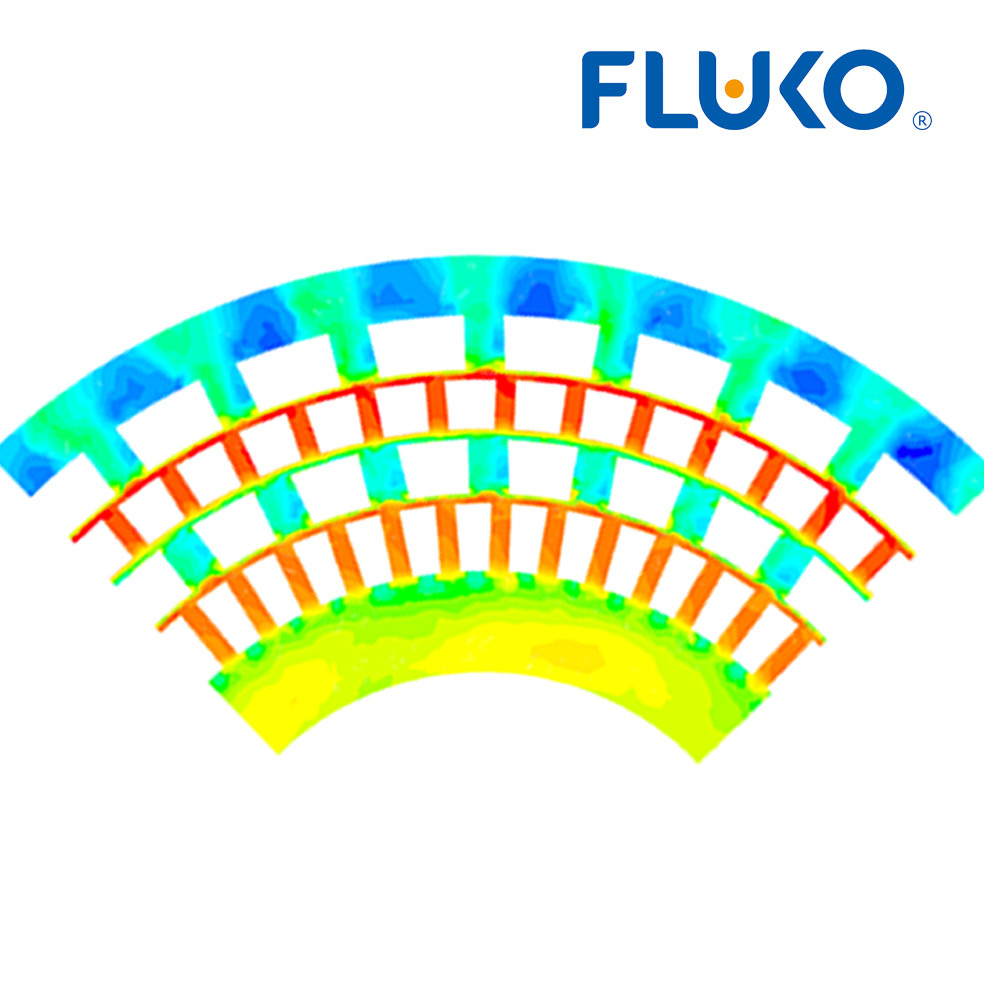

FLUKO employs the lastest micro cutting technology to design and manufacture a microchannel reactor with an accurate three-dimensional structure. The micro scale channel to reduce the size of the corresponding area volume ratio has been significantly improved, the heat and mass transfer performance has been greatly improved fluid, make the material complete mixing, reaction, heat transfer, extraction, absorption, evaporation characteristics in micro channel for micron scale in the proc

Application
Raw materials and intermediates、Polymer polymerization and preparation、Micro process engineering and essence extraction、DNA analysis、Activated cell、Bacteria screening、Enzyme、analysis and reaction、Protein folding、Research and application of reaction dynamics、Nanoparticle synthesis、Dilution of reagents and solvents ......

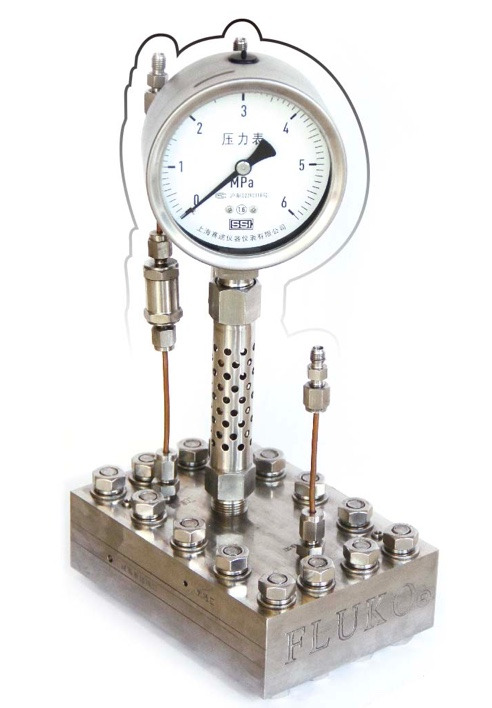

Model: FYW200
Reaction medium: liquid liquid reaction / gas-liquid reaction
Operating temperature range: room temperature -300
Working pressure range: 0-3 MPa
Reactive flow: 0-200 ml/min
Quantity of feed: 2
Feed diameter: Phi 3 mm
Quantity of discharge: 1
Discharge diameter: Phi 3 mm
Temperature measurement quantity: 2
Particle size after reaction: 20-50 nm
Response time: 0.5 s
It is hoped that experts will have the opportunity to discuss the broad application prospects of microreactor with us.
